Soundtraxx Econami ECO-21PNEM Sound Decoder -- Steam
678-881006Couldn't load pickup availability
ECO-21PNEM ECO-21P 1-Amp, 6-Function Sound & Control Decoder - Econami(TM) -- Steam Sounds 1-13/64 x 5/8 x 1/4 30.5 x 15.5 x 6.5mm
A true pioneer in the model train industry, SoundTraxx has been creating innovative products for the discriminating model railroader since 1990. We proudly design and manufacture our industry-best products right here in the USA, and our friendly customer support staff work side-by-side with the rest of our product team.
Econami Decoders
The biggest name in sound is also the biggest name in value! Econami is a full-featured line of Digital Sound Decoders designed with value in mind.

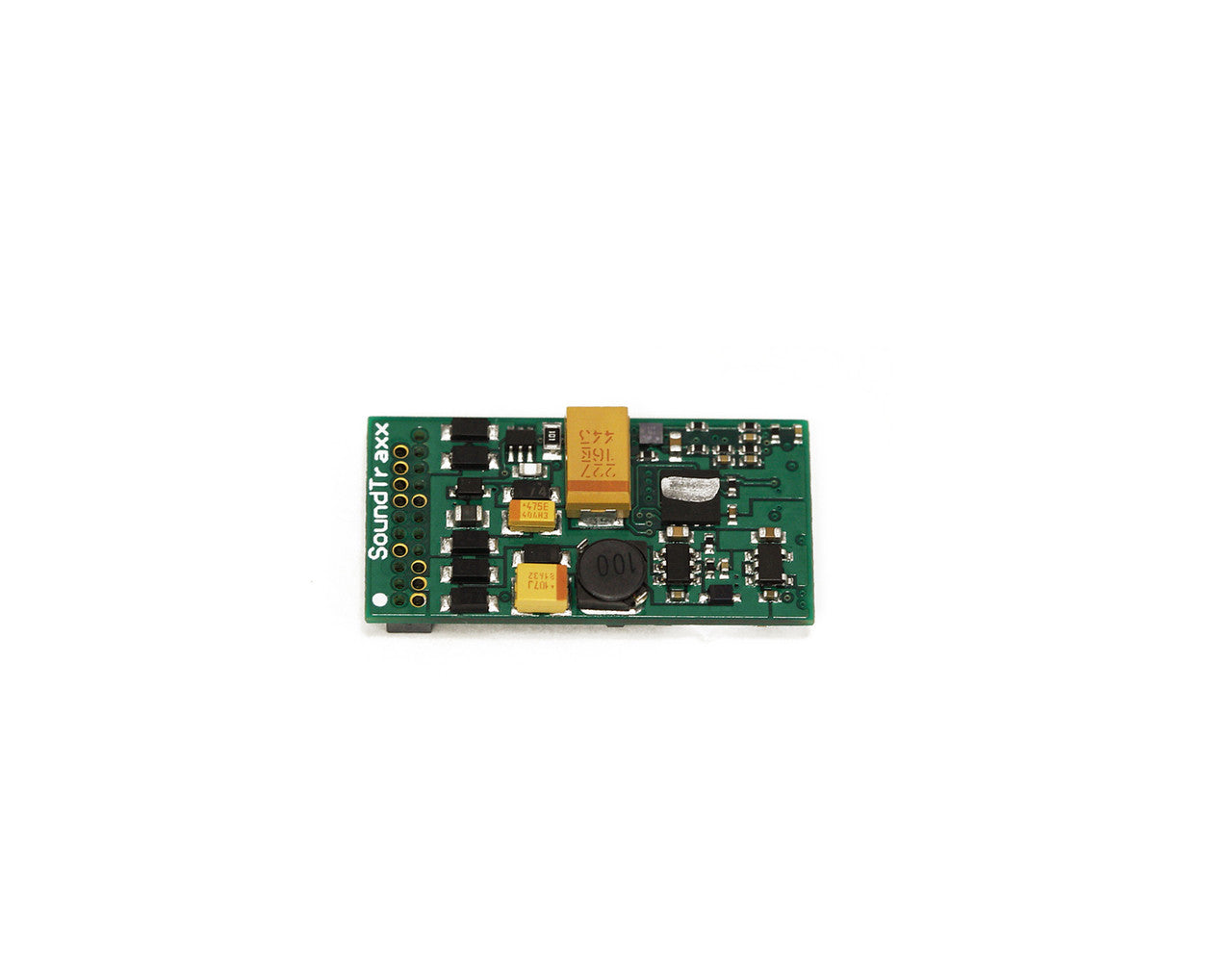

The Econami ECO-21PNEM
This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket.
HIGH QUALITY SOUND LIBRARY
Our large selection of high quality sound effects include:
- 4 Exhaust Chuffs
- 5 Prime Movers in each sound profile
- Up to 7 Bells
- 16 Airhorns
- 16 Whistles
- Additional couplers, dynamos, and more!
EASY INSTALLATION
This decoder simply plugs into models equipped with an NEM-supported 21-pin socket and can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.
| Dimensions: | 30.5 x 15.5 x 6.6mm |
| Max. Motor Stall Current: | 1A |
| Max. Function Current: | 100mA (each output) |
| Function Outputs: | 6 |
| Audio Amplifier: | 2 Watt, 8-Ohm Load |
| DCC Track Voltage: | 7V – 22V |
| Sound Channels: | 12 |
| Econami Owner's Manual |
|
Econami Installation Guide |
| Econami Diesel Quick Start Guide |
| Econami Steam Quick Start Guide |
| Econami Steam User's Guide |
| Econami Diesel User's Guide |
| Econami Sound Selection References: |
| Econami Steam Sound Selection Reference |
| Econami Diesel Sound Selection Reference |
