Soundtraxx ECO-21 PNEM Diesel Sound Decoder 882006

Soundtraxx ECO-21 PNEM Diesel Sound Decoder 882006

$84.99 USD
$84.99 USD
Sale Sold out

SOUNDTRAXX ECONAMI DECODERS
The biggest name in sound is also the biggest name in value! Econami is a full-featured line of Digital Sound Decoders designed with value in mind.

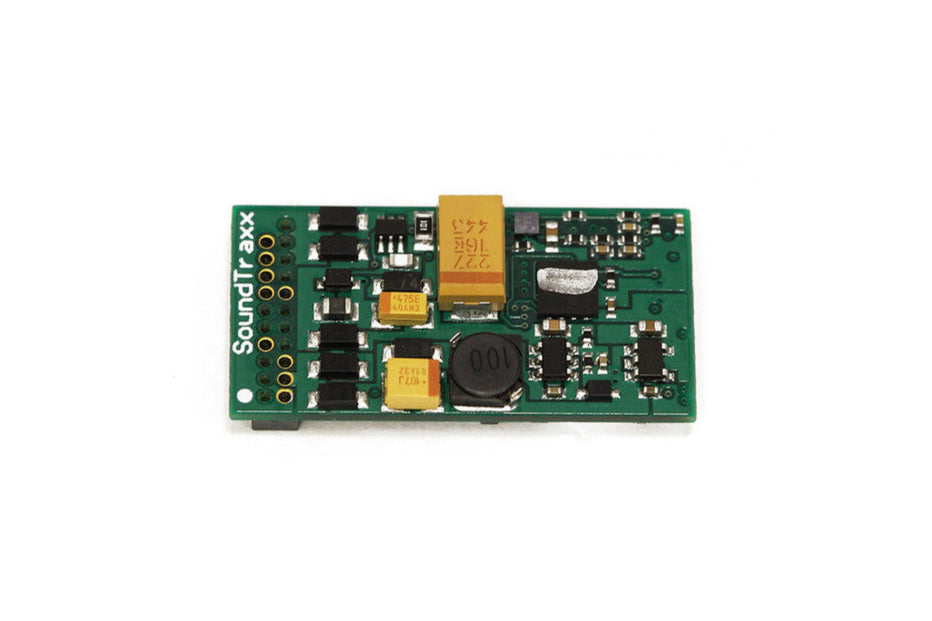

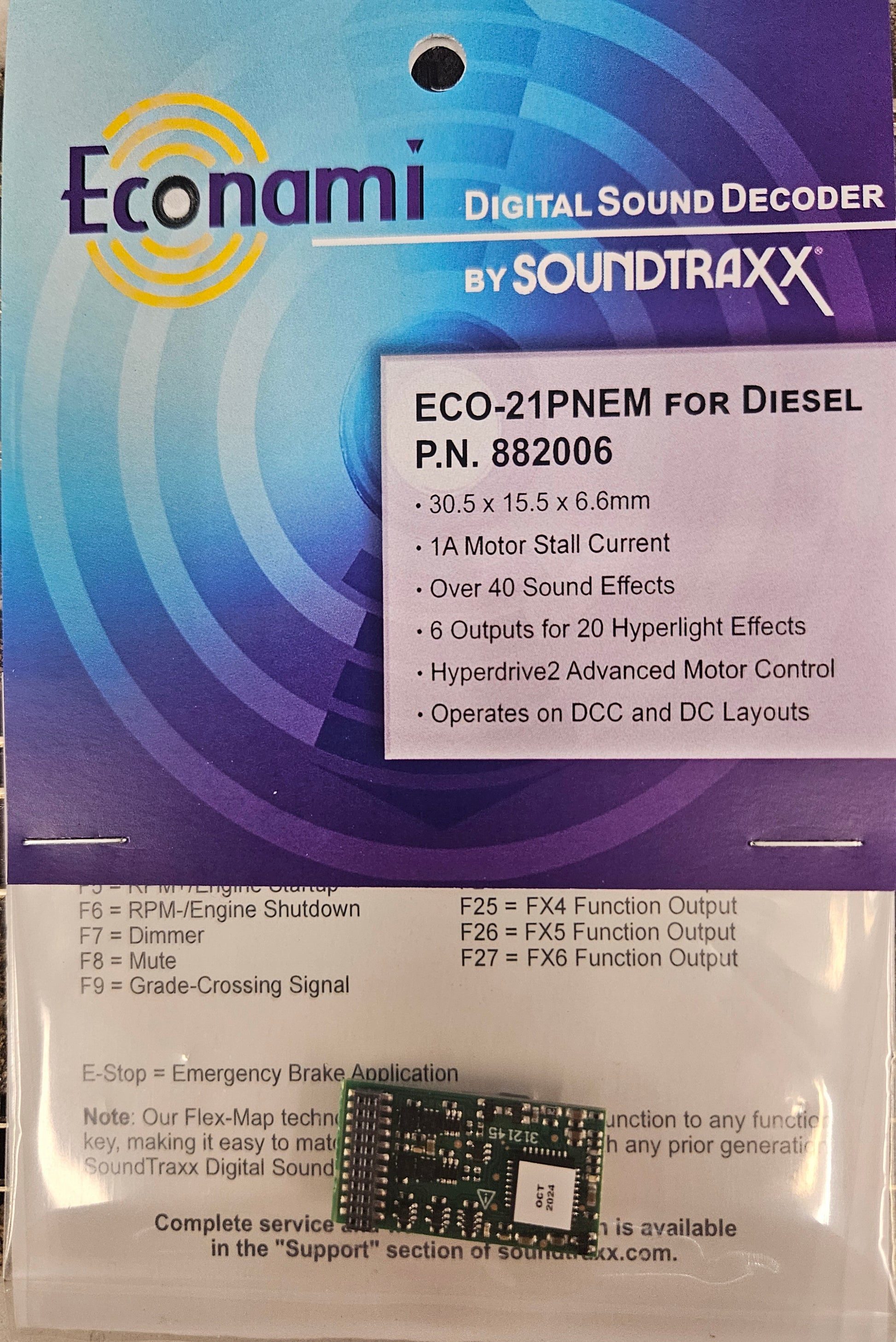

The ECONAMI ECO-21PNEM
This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket.

HIGH QUALITY SOUND LIBRARY
Our large selection of high quality sound effects include:

4 Exhaust Chuffs
5 Prime Movers in each sound profile
Up to 7 Bells
16 Airhorns
16 Whistles
Additional couplers, dynamos, and more!

EASY INSTALLATION
This decoder simply plugs into models equipped with an NEM-supported 21-pin socket and can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.

Dimensions: 30.5 x 15.5 x 6.6mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7V – 22V
Sound Channels: 12

Econami Installation Guide

Econami Diesel Quick Start Guide

Econami Diesel User's Guide

Econami Diesel Sound Selection Reference

Econami Diesel Sounds
