Walthers 910-20323

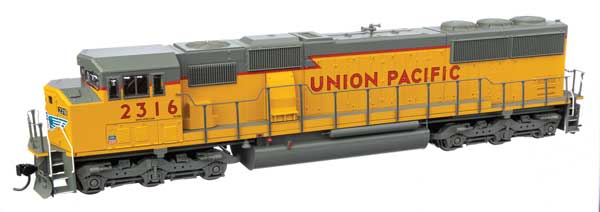

910-20323 WalthersMainline EMD SD60M with 3-Piece Windshield - ESU(R) Sound & DCC -- Union Pacific(R) #2316

910-20323 WalthersMainline EMD SD60M with 3-Piece Windshield - ESU(R) Sound & DCC -- Union Pacific(R) #2316

$219.99 USD
$219.99 USD
Sale Sold out

Revolutionize freight service with WalthersMainline SD60 diesels. Based on mid-production EMD units built with safety cabs fitted with a three-piece windshield and designated as SD60M for modified, these heavy-haulers are still going strong for many original owners and shortlines. Ready for service on your railroad, check out the many features including:

  • Limited edition - one time run of these roadnumbers!
  • Prototypes in service 1989 to the present in main line and regional service
  • Mid-production safety cab with three-piece windshield
  • Open grating on steps
  • Available with ESU Sound & DCC for DCC & DC layouts featuring:
    • 4 Function outputs with brightness control by CV
    • Fully DCC Compatible
    • 14, 28, 128 Speedsteps
    • Dual Mode DC/DCC
    • 4 Air Horns changeable by CVs
    • 2 Bells Changeable by CVs
    • Full 8 Notch Prime Mover Sounds
    • Compressor
    • Dynamic Brake
    • Multiple realistic lighting effects
    • 21-pin DCC plug
  • Same powerful drive as WalthersProto(R) locos featuring:
    • 5-pole skew-wound motor
    • 14:1 gear ratio
    • Helical-cut gears for quiet operation and easy multiple unit operation
    • All-wheel drive and electrical pickup
    • Dual machined brass flywheels
  • Heavy die-cast metal chassis
  • Constant & directional LED headlights
  • Updated shell with molded drill starter points for grab irons in EMD SD60M Diesel Detail Kit (#910-257) sold separately
  • RP-25 metal wheels
  • Proto MAX(TM) metal knuckle couplers
      • PLEASE NOTE: When operating Walthers-branded DCC-equipped locomotives in DC mode, do not use power packs that exceed an 18V rating. This includes MRC 1300-series power packs which have known issues with our decoders.
      • Make your WalthersMainline SD60M 2- or 3-Window models more realistic with these accessories, available separately:


    SD60M Detail Kit
    Walthers Double Ended Pin Vise
    Walthers Drill Bits


    Alternate Horns and Bells include: Horns:    CV163 = Nathan K3LA (default) CV163 = Nathan P3 CV163 = Leslie RS3L CV163 = Nathan K5LA CV163 = Nathan P5

    Bells: CV164 = Steel Air Bell (default) CV164 = Graham White E-Bell

    Click here for additional information on DCC functions:     ESU CV List
    ESU Function Mapping
    ESU Function Output
